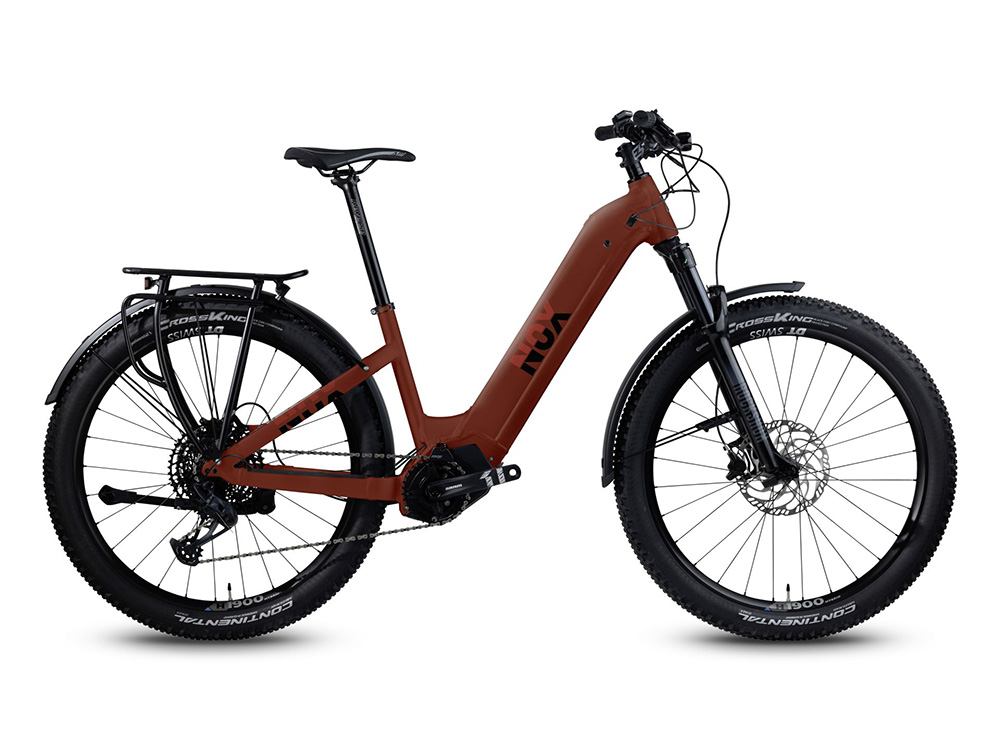

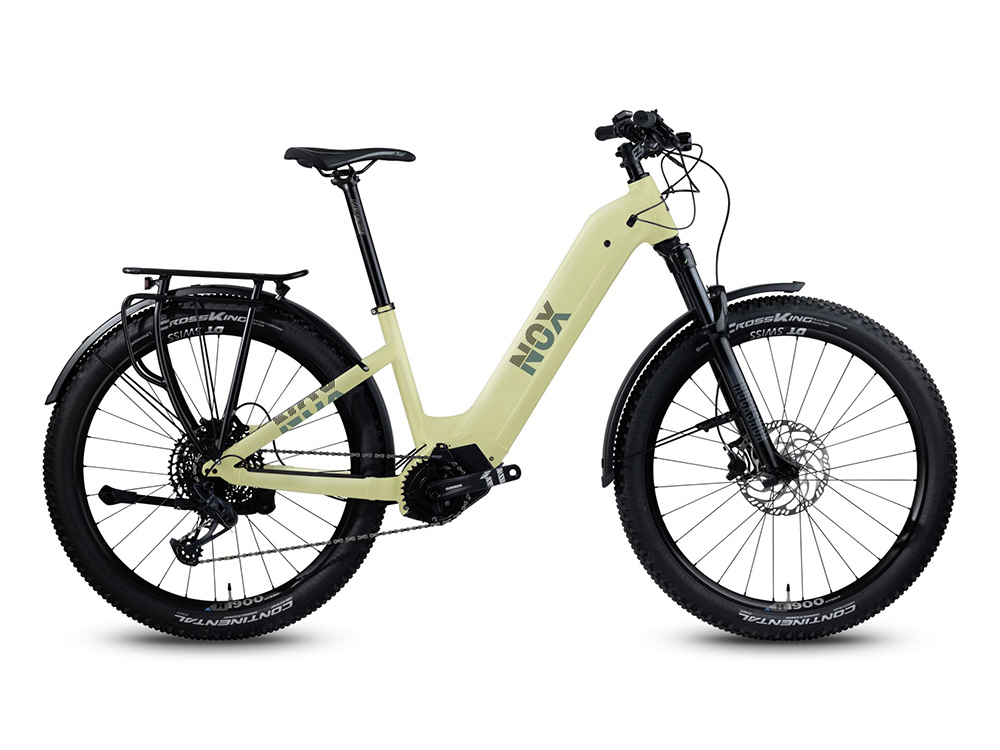

HYBRID XC TOUR Deep Entry SACHS P3
HYBRID XC TOUR Deep Entry / 112 Nm
Just hop on and ride with ease.
You’re looking for a bike that’s off-road capable but also feels right at home in the urban jungle – and one you can always mount comfortably? A robust, reliable bike for commuting during the week and escaping into nature on the weekends? A bike that lightens your load and is always a dependable companion?
If you answered YES to these questions, then our NOX HYBRID XC TOUR is the SUV among e-bikes – perfect for anyone who wants to look good both in the city and out on the trails. Now available for the first time in a deep-entry version.
HIGHLIGHTS
Weight (size M): appr. 26 kg
Permissible total weight: 150 kg
+++ The visualizations of the bike models are partly preview renderings and the original may differ from the specification. All information on scope of technical data and performance as well as specifications of the bikes according to the knowledge available at the time of product launch (Q4 2022). Price and equipment subject to change. +++
Just hop on and ride with ease.
You’re looking for a bike that’s off-road capable but also feels right at home in the urban jungle – and one you can always mount comfortably? A robust, reliable bike for commuting during the week and escaping into nature on the weekends? A bike that lightens your load and is always a dependable companion?
If you answered YES to these questions, then our NOX HYBRID XC TOUR is the SUV among e-bikes – perfect for anyone who wants to look good both in the city and out on the trails. Now available for the first time in a deep-entry version.
HIGHLIGHTS
- High-End Drive System: BMZ RS I SACHS RS (48V, 250W, 112Nm)
- High-Performance replaceable battery: BMZ URV10 / 725 Wh
- NOX high-performance aluminum full-frame
- Flip-Chip Dropout
- Boost Standard
- High-End displays / remotes + Smartphone connection
- Trekking-specific components (e-bike optimized and certified)
- Front light (700 lm)
- Rear rack with integrated rear light (load up to 25kg)
- Mudguards
- Side stand
- Mounts for trailer adapter for child trailer, etc.
- Tested beyond standard requirements (EFBE Test)
- Voluntary manufacturer´s guarantee on frame and swing arm + Crash Replacement Service (CRS)
Weight (size M): appr. 26 kg
Permissible total weight: 150 kg
+++ The visualizations of the bike models are partly preview renderings and the original may differ from the specification. All information on scope of technical data and performance as well as specifications of the bikes according to the knowledge available at the time of product launch (Q4 2022). Price and equipment subject to change. +++
| Modell | CORE | PRO |
| Rahmen / frame | NOX Hybrid XC Hard Tail NHPA | NOX Hybrid XC Hard Tail NHPA |
| Antrieb / motorset | BMZ RS / 112Nm | BMZ RS / 112Nm |
| Akku / battery | BMZ Battery URV8 / 650Wh | BMZ Battery URV8 / 650Wh |
| Display | SIGMA EOX View 1300 | SIGMA EOX View 1300 |
| Gabel / Fork | ROCKSHOX 35 Silver TK 27,5"+ 120mm | ROCKSHOX 35 Gold RL 27,5"+ 120mm |
| Dämpfer / rear shock | FOX FLOAT DPS P-S A 3pos Evol LV FOX AM | FOX FLOAT DPS P-S A 3pos Evol LV FOX AM |
| Gepäckträger / Rack | RACKTIME RT Shine Evo due mit Rücklicht und Kabel | RACKTIME RT Shine Evo due mit Rücklicht und Kabel |
| Schutzbleche / Mud guards | SKS Bluemels U75 | SKS Bluemels U75 |
| Seitenständer / Side stands | URSUS King XL | URSUS King XL |
| Beleuchtung / Lights | SUPERNOVA M99 Mini pro 25 | SUPERNOVA M99 Mini pro 25 |
| Vorbau / Stem | REVERSE E-XC 60/6°/Ø31.8mm | REVERSE E-XC 60/6°/Ø31.8mm |
| Steuersatz / Headset | FIRST NOX Components ZS44/56 | FIRST NOX Components ZS44/56 |
| Griffe / Grips | ODI Elite Flow Lock-on 2.1 | ODI Elite Flow Lock-on 2.1 |
| Lenker / Handlebar | REVERSE E-Element ERGO 740 - Ø31.8/R40mm | REVERSE E-Element ERGO 740 - Ø31.8/R40mm |
| Sattel / Saddle | REVERSE Components | REVERSE Components |
| Sattelstütze / Seat post | LIMOTEC A1 30,9/150mm | LIMOTEC A1 30,9/150mm |
| Kurbeln / Crankset | FSA | FSA |
| Schaltwerk / Rear derailleur | SHIMANO DEORE RD-M5130 10-speed LG | SHIMANO XT RD-M8130 11-speed LG |
| Shifter rechts / Shifter right | SHIMANO DEORE SL-M5130 10-speed LG | SHIMANO XT SL-M8130 11-speed LG |
| Ritzelpaket / Cassette | SHIMANO LinkGlide CS-LG600 10-speed 11-43T | SHIMANO LinkGlide CS-LG600 11-speed 11-50T |
| Bremse vo. / Brake fr. | SHIMANO front BL-MT401/BR-MT420 | SHIMANO front BL-MT401/BR-MT420 |
| Bremse hi. / Brake re. | SHIMANO rear BL-MT401/BR-MT420 | SHIMANO rear BL-MT401/BR-MT420 |
| Laufrad vo. / Wheel fr. | DT SWISS H1900 Spline 27,5" VR 35mm | DT SWISS H1900 Spline 27,5" VR 35mm |
| Laufrad hi. / Wheel re. | DT SWISS H1900 Spline 27,5" HR 35mm | DT SWISS H1900 Spline 27,5" HR 35mm |
| Reifen vo. / Tire fr. | CONTINENTAL Ruban ShieldWall foldable skin SL | CONTINENTAL Ruban ShieldWall |
| Reifen hi. / Tire re. | CONTINENTAL Ruban ShieldWall foldable skin SL | CONTINENTAL Ruban ShieldWall foldable skin SL |

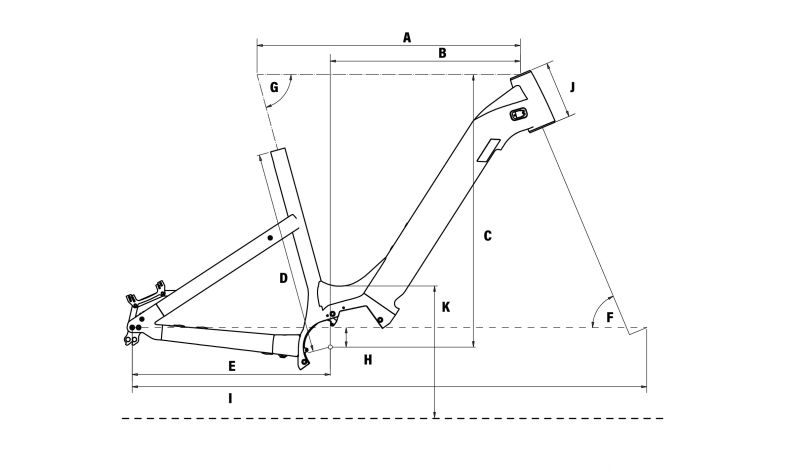

| Size | S | M | L | XL |
| A Top Tube | 588 mm | 595 mm | 619 mm | 639 mm |
| B Reach | 415 mm | 423 mm | 447 mm | 467 mm |
| C Stack | 641 mm | 641 mm | 641 mm | 641 mm |
| D Seat Tube | 395 mm | 435 mm | 480 mm | 30 mm |
| E Chain Stay | 466 mm | 466 mm | 466 mm | 466 mm |
| F Steering Angle | 67,2° | 67,2° | 67,2° | 67,2° |
| G Seat Angle | 74,4° | 74,4° | 74,4° | 74,4° |
| H BB Drop | 46 mm | 46 mm | 46 mm | 46 mm |
| I Wheel Base | 1179 mm | 1187 mm | 1210 mm | 1230 mm |
| J Head Tube | 125 mm | 125 mm | 135 mm | 135 mm |
| K Standover Height | 457 mm | 459 mm | 457 mm | 459 mm |
