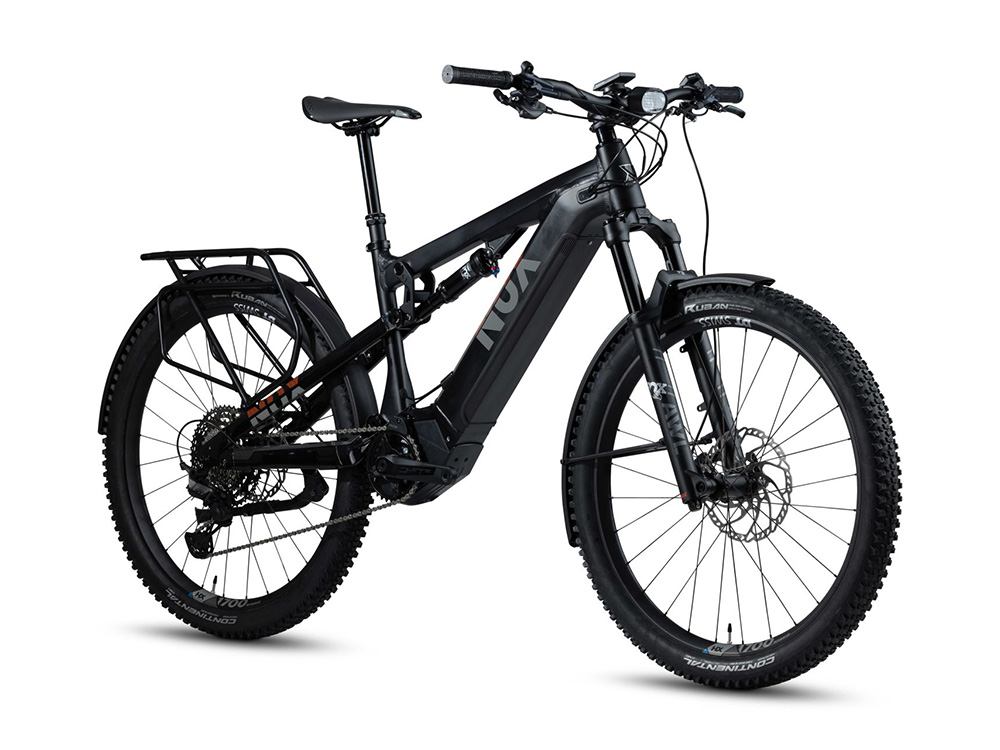

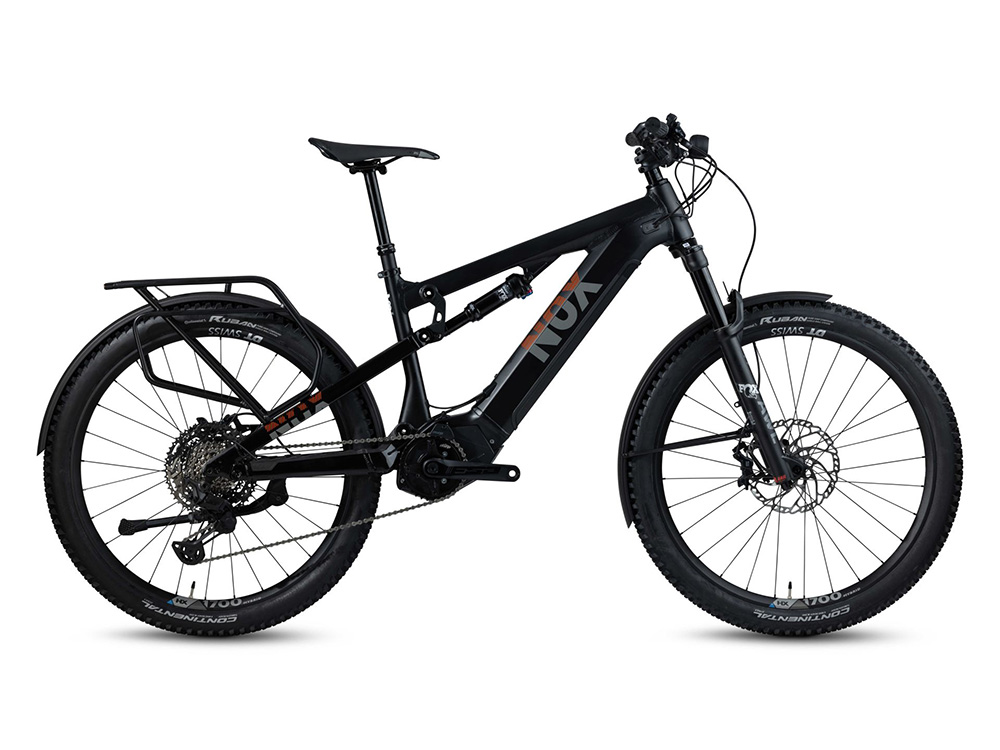

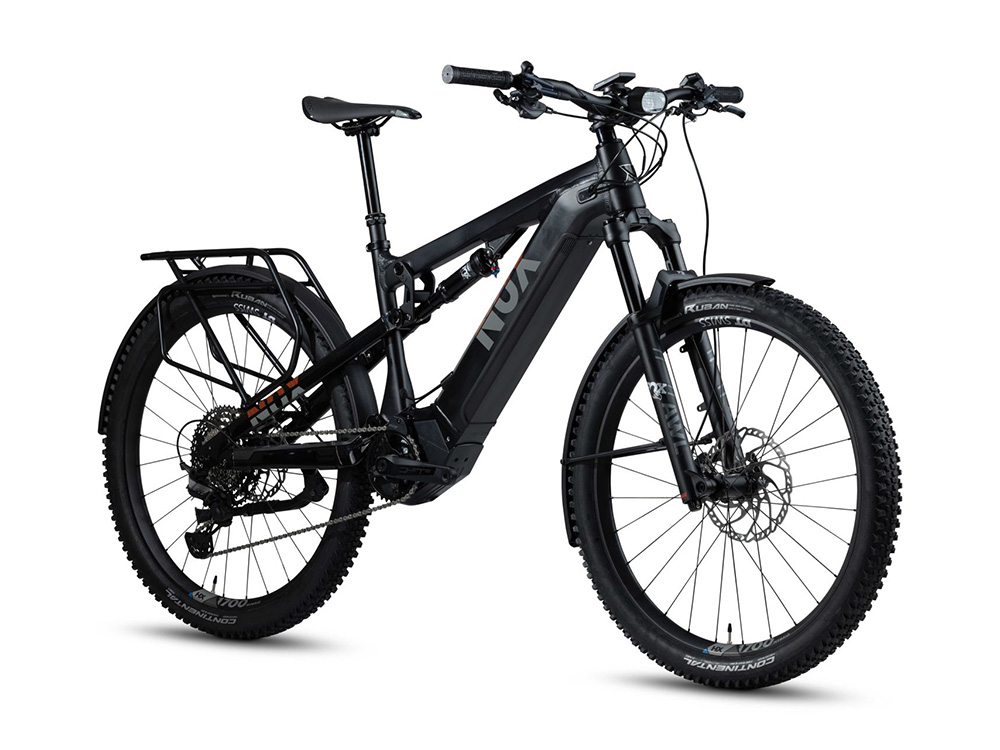

NOX HYBRID TOUR 5.1 SACHS P3
HYBRID TOUR 5.1 / 112 Nm
UNTAMED AND INDEPENDENT.
You’re looking for a worry-free companion for long, enjoyable tours, an off-road commuter, or a pack mule for everyday use that doesn’t shy away from rough terrain? A bike that’s demanding, comfortable, and versatile all at once? A bike that gives you a sense of security and impresses with intuitive, forgiving handling? And all of that paired with cutting-edge technology and real power?
If you answered YES to these questions, then our NOX HYBRID TOUR 5.1 is the ultimate all-rounder among e-bikes – a bike that won’t back down from challenging trails and will take a load off your shoulders at the same time.
HIGHLIGHTS
Weight (size M): appr. 26 kg
Permissible total weight: 135 kg
+++ The visualizations of the bike models are partly preview renderings and the original may differ from the specification. All information on scope of technical data and performance as well as specifications of the bikes according to the knowledge available at the time of product launch (Q4 2022). Price and equipment subject to change. +++
UNTAMED AND INDEPENDENT.
You’re looking for a worry-free companion for long, enjoyable tours, an off-road commuter, or a pack mule for everyday use that doesn’t shy away from rough terrain? A bike that’s demanding, comfortable, and versatile all at once? A bike that gives you a sense of security and impresses with intuitive, forgiving handling? And all of that paired with cutting-edge technology and real power?
If you answered YES to these questions, then our NOX HYBRID TOUR 5.1 is the ultimate all-rounder among e-bikes – a bike that won’t back down from challenging trails and will take a load off your shoulders at the same time.
HIGHLIGHTS
- High-End Drive System: BMZ RS I SACHS RS (48V, 250W, 112Nm)
- High-Performance replaceable battery: BMZ URV10 / 725 Wh
- NOX high-performance aluminum full-frame
- Flex-Linkage System (FLS)
- Flip-Chip Dropout
- Boost Standard
- High-End displays / remotes + Smartphone connection
- Trekking-specific components
- Front light
- Pannier rack with integrated rear light (load up to 25kg)
- Mudguards
- Side stand
- Mounts for water bottle holders and trailer adapter for child trailer, etc.
- Voluntary manufacturer´s guarantee on frame and swing arm + Crash Replacement Service (CRS)
Weight (size M): appr. 26 kg
Permissible total weight: 135 kg
+++ The visualizations of the bike models are partly preview renderings and the original may differ from the specification. All information on scope of technical data and performance as well as specifications of the bikes according to the knowledge available at the time of product launch (Q4 2022). Price and equipment subject to change. +++
| Modell | CORE | PRO |
| Rahmen / frame | NOX Hybrid Trail 130mm NHPA | NOX Hybrid Trail 130mm NHPA |
| Antrieb / motorset | SACHS RS / BMZ RS / 112Nm | SACHS RS / BMZ RS / 112Nm |
| Akku / battery | SACHS Battery SI 725.01 / 725Wh | SACHS Battery SI 725.01 / 725Wh |
| Display | SIGMA EOX View 1300 | SIGMA EOX View 1300 |
| Gabel / Fork | FOX 34 FLOAT 29in AWL 140 RAIL Sweep-Adj | FOX 34 FLOAT 29in AWL 140 RAIL Sweep-Adj |
| Dämpfer / rear shock | FOX FLOAT DPS P-S A 3pos Evol LV FOX AM | FOX FLOAT DPS P-S A 3pos Evol LV FOX AM |
| Gepäckträger / Rack | RACKTIME Custom | RACKTIME Custom |
| Schutzbleche / Mud guards | RACKTIME Wingee | RACKTIME Wingee |
| Seitenständer / Side stands | URSUS King XL | URSUS King XL |
| Beleuchtung / Lights | SUPERNOVA M99 Mini 2 + M99 Tail Light | SUPERNOVA M99 Mini 2 + M99 Tail Light |
| Vorbau / Stem | REVERSE E-XC 60/6°/Ø31.8mm | REVERSE E-XC 60/6°/Ø31.8mm |
| Steuersatz / Headset | FIRST NOX Components ZS44/56 | NOX Components ZS44/56 |
| Griffe / Grips | ODI Elite Flow Lock-on 2.1 | ODI Elite Flow Lock-on 2.1 |
| Lenker / Handlebar | REVERSE E-Element ERGO 740 - Ø31.8/R40mm | REVERSE E-Element ERGO 740 - Ø31.8/R40mm |
| Sattel / Saddle | PROLOGO Proxim W350 Microfiber | REVERSE Components |
| Sattelstütze / Seat post | Telescoping | FOX Transfer P-SE A Ø 30.9mm 125mm Drop Internal AM |
| Kurbeln / Crankset | FSA | FSA |
| Schaltwerk / Rear derailleur | SHIMANO DEORE RD-M5130 10-speed LG | SHIMANO XT RD-M8130 11-speed LG |
| Shifter rechts / Shifter right | SHIMANO DEORE SL-M5130 10-speed LG | SHIMANO XT SL-M8130 11-speed LG |
| Ritzelpaket / Cassette | SHIMANO LinkGlide CS-LG600 10-speed 11-43T | SHIMANO LinkGlide CS-LG600 11-speed 11-50T |
| Bremse vo. / Brake fr. | SHIMANO front BL-MT401/BR-MT420 | SHIMANO front BL-M6100/BR-M6120 |
| Bremse hi. / Brake re. | SHIMANO rear BL-MT401/BR-MT420 | SHIMANO rear BL-M6100/BR-M6120 |
| Laufrad vo. / Wheel fr. | DT SWISS H1900 Spline 27,5" VR 35mm | DT SWISS HX1700 Spline 27,5" VR 35mm |
| Laufrad hi. / Wheel re. | DT SWISS H1900 Spline 27,5" HR 35mm | DT SWISS HX1700 Spline 27,5" HR 35mm |
| Reifen vo. / Tire fr. | CONTINENTAL Ruban ShieldWall foldable skin SL | CONTINENTAL Ruban ShieldWall foldable skin SL |
| Reifen hi. / Tire re. | CONTINENTAL Ruban ShieldWall foldable skin SL | CONTINENTAL Ruban ShieldWall foldable skin SL |
| Size | S | M | L | XL |
| A Top Tube | 581 mm | 604 mm | 630 mm | 654 mm |
| B Reach | 425 mm | 448 mm | 471 mm | 495 mm |
| C Stack | 602 mm | 602 mm | 611 mm | 611 mm |
| D Seat Tube | 400 mm | 417 mm | 453 mm | 499 mm |
| E Chain Stay | 466 mm | 466 mm | 466 mm | 466 mm |
| F Steering Angle | 66,2° | 66,2° | 66,2° | 66,2° |
| G Seat Angle | 75,2° | 75,2° | 75,2° | 75,2° |
| H BB Drop | 2 mm | 2 mm | 2 mm | 2 mm |
| I Wheel Base | 1189 mm | 1212 mm | 1239 mm | 1263 mm |
| J Head Tube | 125 mm | 125 mm | 135 mm | 135 mm |
| K Standover Height | 828 mm | 830 mm | 837 mm | 838 mm |
