NOX HYBRID XC TOUR BROSE P2
HYBRID XC TOUR / 90 Nm
Effortless riding with heavy loads.
You’re looking for a bike that’s off-road capable but also at home in the urban environment – and ready to handle even the toughest expeditions? A robust, reliable bike for commuting during the week and getting out into nature on the weekends? A bike that takes the load off your shoulders and is always a dependable partner?
If you answered YES to these questions, then our NOX HYBRID XC TOUR is the SUV among e-bikes – perfect for anyone who wants to feel confident both in the city and out on the trails.
HIGHLIGHTS
Weight (size M): appr. 26 kg
Permissible total weight: 150 kg
+++ The visualizations of the bike models are partly preview renderings and the original may differ from the specification. All information on scope of technical data and performance as well as specifications of the bikes according to the knowledge available at the time of product launch (Q4 2022). Price and equipment subject to change. +++
Effortless riding with heavy loads.
You’re looking for a bike that’s off-road capable but also at home in the urban environment – and ready to handle even the toughest expeditions? A robust, reliable bike for commuting during the week and getting out into nature on the weekends? A bike that takes the load off your shoulders and is always a dependable partner?
If you answered YES to these questions, then our NOX HYBRID XC TOUR is the SUV among e-bikes – perfect for anyone who wants to feel confident both in the city and out on the trails.
HIGHLIGHTS
- High-End Drive System: Brose Drive S Mag (36V, 250W, 90Nm)
- High-Performance replaceable battery: BMZ URV10 / 725 Wh
- NOX high-performance aluminum full-frame
- Flip-Chip Dropout
- Boost Standard
- High-End displays / remotes + Smartphone connection
- Trekking-specific components
- Front light (700 lm)
- Rear rack with integrated rear light (load up to 25kg)
- Mudguards
- Side stand
- Mounts for water bottle holders and trailer adapter for child trailer, etc.
- Voluntary manufacturer´s guarantee on frame and swing arm + Crash Replacement Service (CRS)
Weight (size M): appr. 26 kg
Permissible total weight: 150 kg
+++ The visualizations of the bike models are partly preview renderings and the original may differ from the specification. All information on scope of technical data and performance as well as specifications of the bikes according to the knowledge available at the time of product launch (Q4 2022). Price and equipment subject to change. +++
| Modell | CORE | PRO |
| Rahmen / frame | NOX Hybrid XC Hard Tail NHPA | NOX Hybrid XC Hard Tail NHPA |
| Antrieb / motorset | BROSE Drive-S Mag Unit / 90Nm | BROSE Drive-S Mag Unit / 90Nm |
| Akku / battery | BMZ URV10 / 725Wh | BMZ URV10 / 725Wh |
| Display | Brose Display Central | Brose Display Central |
| Gabel / Fork | FOX FLOAT 27.5in AWL 120 RAIL Sweep-Adj | FOX 34 FLOAT 27.5in AWL 120 RAIL Sweep-Adj |
| Gepäckträger / Rack | RACKTIME RT Shine Evo due mit Rücklicht und Kabel | RACKTIME RT Shine Evo due mit Rücklicht und Kabel |
| Schutzbleche / Mud guards | "SKS ""Bluemels U75"" PET A 75 R 28""" | "SKS ""Bluemels U75"" PET A 75 R 28""" |
| Seitenständer / Side stands | URSUS King XL | URSUS King XL |
| Beleuchtung / Lights | SUPERNOVA Mini 2 | SUPERNOVA M99 Mini pro 25 |
| Vorbau / Stem | RACE FACE Aeffect 35 | RACE FACE Aeffect 35 |
| Steuersatz / Headset | FIRST NOX Components ZS44/56 | FIRST NOX Components ZS44/56 |
| Griffe / Grips | ODI Rogue Lock-on | ODI Rogue Lock-on |
| Lenker / Handlebar | RACE FACE Aeffect 35 | RACE FACE Aeffect 35 |
| Sattel / Saddle | PROLOGO Proxim W350 Microfiber | PROLOGO Proxim W450 Microfibers |
| Sattelstütze / Seat post | LIMOTEC A1 30,9/125mm | FOX Transfer P-SE A Ø 30.9mm 150mm Drop Internal AM |
| Kurbeln / Crankset | FSA | FSA |
| Schaltwerk / Rear derailleur | SHIMANO DEORE RD-M5130 10-speed LG | SHIMANO XT RD-M8130 11-speed LG |
| Shifter rechts / Shifter right | SHIMANO DEORE SL-M5130 10-speed LG | SHIMANO XT SL-M8130 11-speed LG |
| Ritzelpaket / Cassette | SHIMANO LinkGlide CS-LG600 10-speed 11-43T | SHIMANO LinkGlide CS-LG600 11-speed 11-50T |
| Bremse vo. / Brake fr. | SHIMANO front BL-MT401/BR-MT420 | SHIMANO front BL-M6100/BR-M6120 |
| Bremse hi. / Brake re. | SHIMANO rear BL-MT401/BR-MT420 | SHIMANO rear BL-M6100/BR-M6120 |
| Laufrad vo. / Wheel fr. | DT SWISS H1900 Spline 27,5" VR 35mm | DT SWISS HX1700 Spline 27,5"" VR 35mm |
| Laufrad hi. / Wheel re. | DT SWISS H1900 Spline 27,5"" HR 35mm | DT SWISS HX1700 Spline 27,5"" HR 35mm |
| Reifen vo. / Tire fr. | CONTINENTAL Ruban ShieldWall foldable skin SL | CONTINENTAL Ruban ShieldWall foldable skin SL |
| Reifen hi. / Tire re. | CONTINENTAL Ruban ShieldWall foldable skin SL | CONTINENTAL Ruban ShieldWall foldable skin SL |

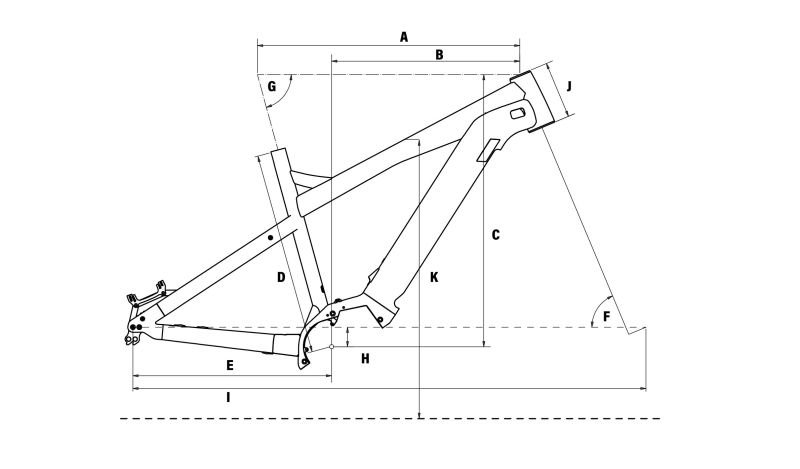

| Size | S | M | L | XL |
| A Top Tube | 588 mm | 596 mm | 619 mm | 639 mm |
| B Reach | 416 mm | 424 mm | 444 mm | 464 mm |
| C Stack | 632 mm | 632 mm | 642 mm | 642 mm |
| D Seat Tube | 396 mm | 418 mm | 453 mm | 581 mm |
| E Chain Stay | 469 mm | 469 mm | 469 mm | 469 mm |
| F Steering Angle | 67,2° | 67,2° | 67,2° | 67,2° |
| G Seat Angle | 74,7° | 74,7° | 74,7° | 74,7° |
| H BB Drop | 46 mm | 46 mm | 46 mm | 46 mm |
| I Wheel Base | 1179 mm | 1187 mm | 1210 mm | 1230 mm |
| J Head Tube | 125 mm | 125 mm | 135 mm | 135 mm |
| K Standover Height | 804 mm | 805 mm | 808 mm | 809 mm |
