New TXP-24 powered by OSET: Big performance. Full-size capability.
FULL POWER: Advanced performance for ages 10 and above. SAFETY SYSTEM: PIN lock, magnetic cut-out, and secure start-up. CUSTOM SETTINGS: 1600W battery with rider-tuned speed, power and response. MODULAR SETUP: Easily configure for trail or trials riding.
DETAILS:
PERFORMANCE:
Race-level power, all-terrain control: The TXP-24 is the most powerful model in the TXP range, engineered for riders aged 10 and above, including adults, with advanced-grade performance and control.
Active Performance Stabilisation (APS): APS ensures controlled delivery during high-power outputs, preventing sudden torque spikes and helping maintain traction over rocks, roots, and inclines.
Field-Oriented Control (FOC): Advanced FOC controller and encoder-based motor manage torque smoothly based on throttle input and speed, optimising control and responsiveness across varied terrain.
Brushless 1600W motor: High-efficiency OSET BLDC motor with encoder delivers smooth torque and responsive power for confident performance on trails or trials obstacles.
Configurable power delivery:Parental keypad control allows fine-tuning of speed, power, and throttle response to match rider ability and riding style.
Three-dial parental and rider control:Secure keypad allows adjustment of throttle response, power output (25–100%), and top speed - up to 24mph depending on terrain, rider, and setup.
BATTERY:
Big power, reliable runtime:TXP-24’s high-output battery is designed to deliver powerful performance over extended ride sessions, with robust waterproofing and quick-release operation.
IP67-rated waterproofing: Fully sealed against water and dust for reliable use in all weather and terrain types.
Impact-protected battery housing: Durable casing with tight cell spacing prevents damage from off-road vibration or knocks, preserving long-term battery health.
50V 28Ah lithium battery: Delivers consistent, high-discharge energy for increased speed and longer ride times, ideal for trail riding, skill progression, or light competition use.
LED charge level indicator: Battery-integrated LED display shows remaining power clearly during or after use.
Quick-release battery with handle:Removable in seconds using twist-lock connector and top-mounted carry handle for charging or secure storage.
Diagnostic-ready service port: Built-in interface allows service technicians to review battery health, fault history, and operating status.
TECHNOLOGY:
Precision control and advance-level support: Professional-grade technology enhances control, safety, and performance with features typically found on larger off-road machines, giving the TXP-24 its advanced edge.
High-capacity FOC controller: Advanced FOC controller and encoder-based motor manage torque smoothly based on throttle input and speed, optimising control and responsiveness across varied terrain.
Active Performance Stabilisation (APS): APS maintains consistent power delivery as battery voltage naturally drops during a ride, sustaining performance across more of the battery’s charge.
IP67 aluminium controller housing: Rugged alloy enclosure with cooling fins protects sensitive electronics while maintaining thermal performance during high-output riding.
Diagnostic keypad display: Built-in keypad shows live fault codes and system health alerts for simplified rider and technician support.
Two-stage safety startup: Multi-step power-on sequence protects against accidental activation, critical in shared use, transport, or competition settings.
SAFETY
Protection for confident performance: Even with its increased power, the TXP-24 retains full safety functionality, giving experienced riders reassurance and parents peace of mind.

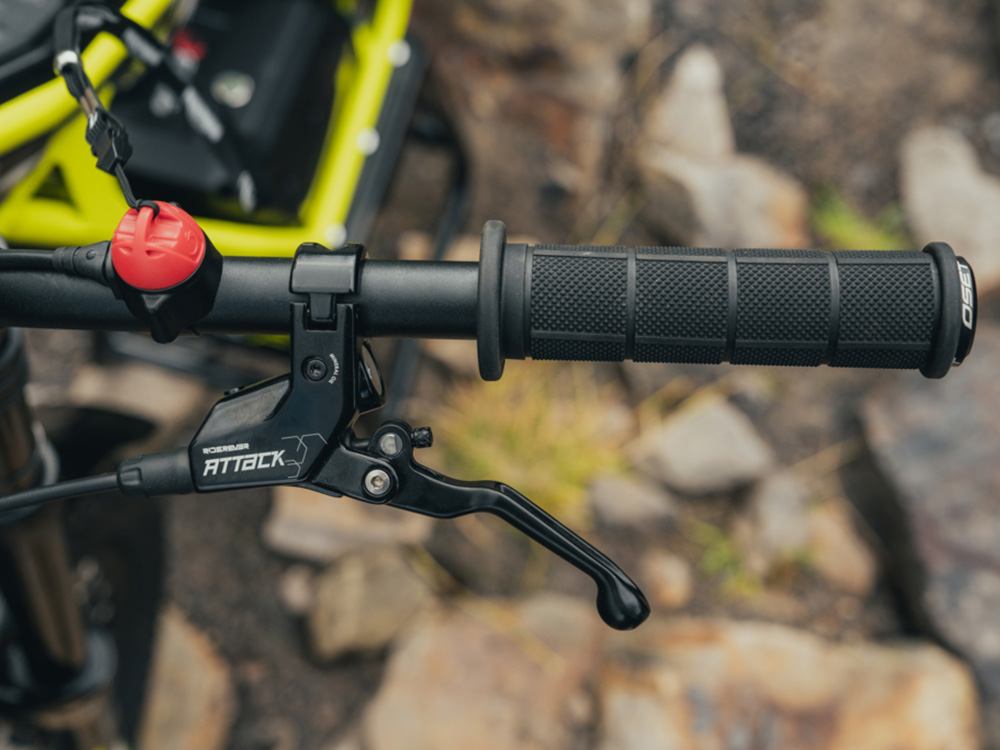

Magnetic wrist lanyard: Instant power cut-off if the rider is separated from the bike, essential in competitive or challenging riding environments.
PIN-protected control panel: Prevents unauthorised mode changes by securing power, speed, and throttle response behind a user-defined PIN code.
Two-step activation sequence: Protects against accidental throttle engagement by requiring two deliberate actions to power up the bike.
Sealed electrical components: All key electrical systems are IP67-rated for dependable function in wet or dusty conditions.
DESIGN
Strong, sharp, race-ready: Built to accommodate youth and adults, the TXP-24 delivers true off-road capability with strong materials, smart proportions, and aggressive Triumph styling.
Triumph Performance yellow livery: Matches full-size Triumph off-road range, featuring signature Performance yellow, black and graphite colours with premium finishes.
Rigid steel frame: Larger tubular chassis with 1220mm wheelbase and 48.1kg overall weight (Trials), 49.4kg (Xplore) offers strength, control, and durability for trail and trials use.

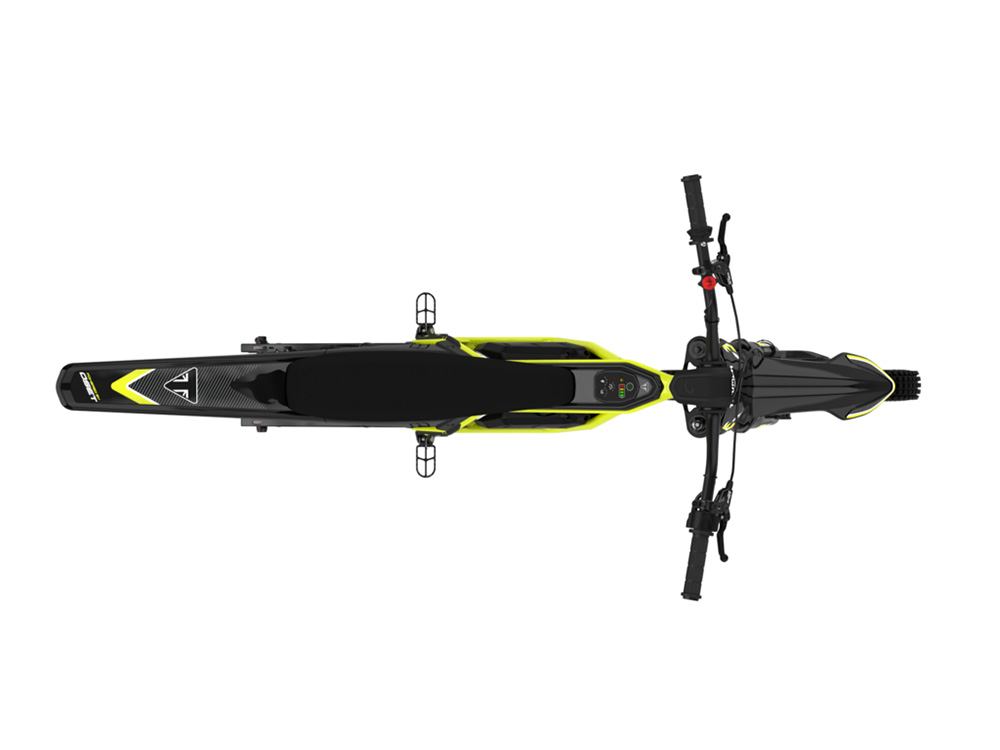

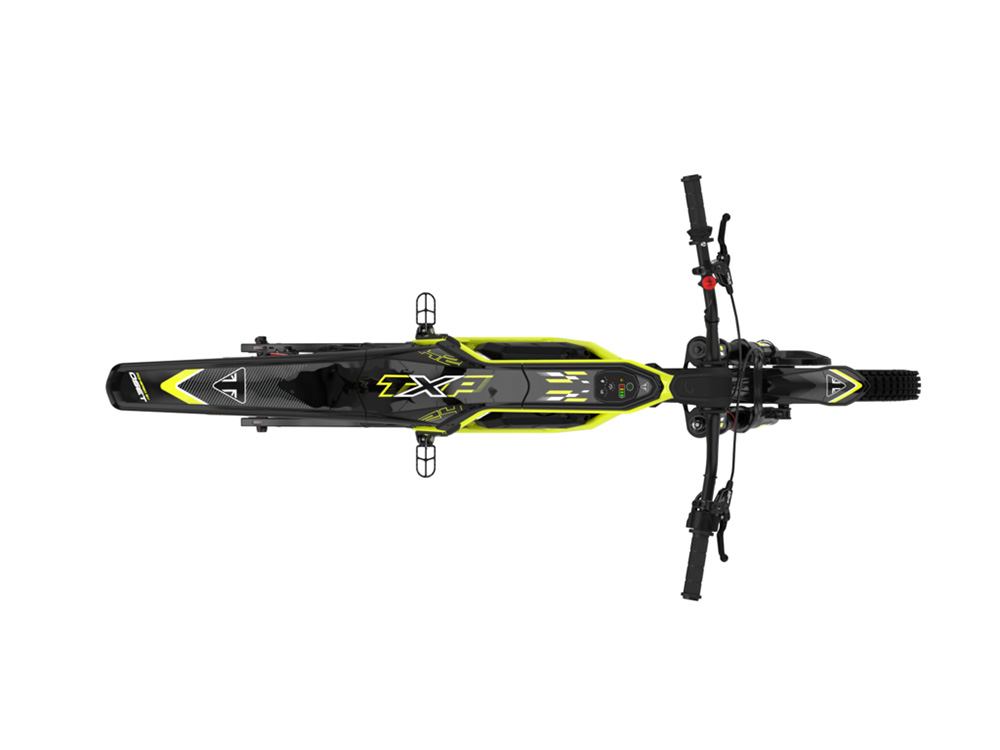

Modular seated/standing setup: Quickly switch from trail-ready seated riding to pure trials-style mode by removing the seat and adjusting the front guard, no tools needed.
ERGONOMICS
Fitted for fun: Sized for riders aged 10+, the TXP-24 supports confident control and comfort over longer sessions, trails, and mixed terrain.
Seat height options: 635mm (Trials mode) or 810mm (Xplore mode) configurations offer comfortable fit and proper footing for older riders and adults.
Scaled controls for youth/adult riders: Brake levers and grips are proportioned for larger hands while remaining lightweight and easy to modulate.
Rider-focused layout: Minimal bar clutter and intuitive input zones encourage body control, line choice, and confident riding technique.
HANDLING
Confidence-inspiring, capable, competition-ready: Upgraded suspension and geometry help the TXP-24 handle trail drops, tight trials sections, and varied terrain with agility and precision.
Stable, wheelbase geometry: 1220mm wheelbase and 305mm ground clearance support confident, balanced riding across technical terrain and trail sections.

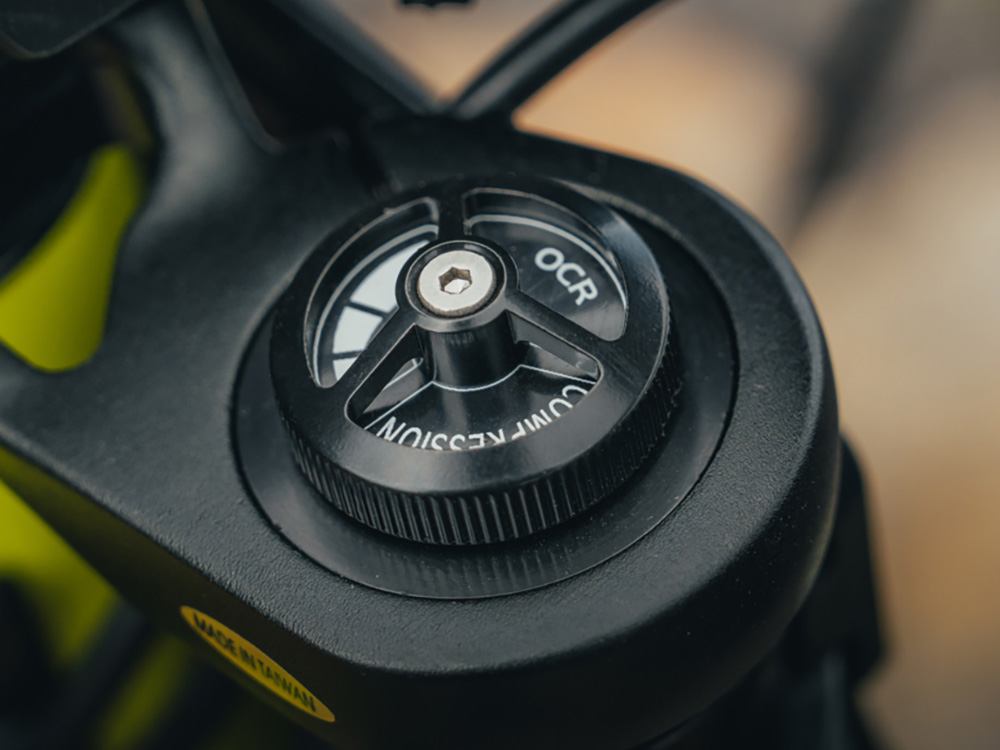

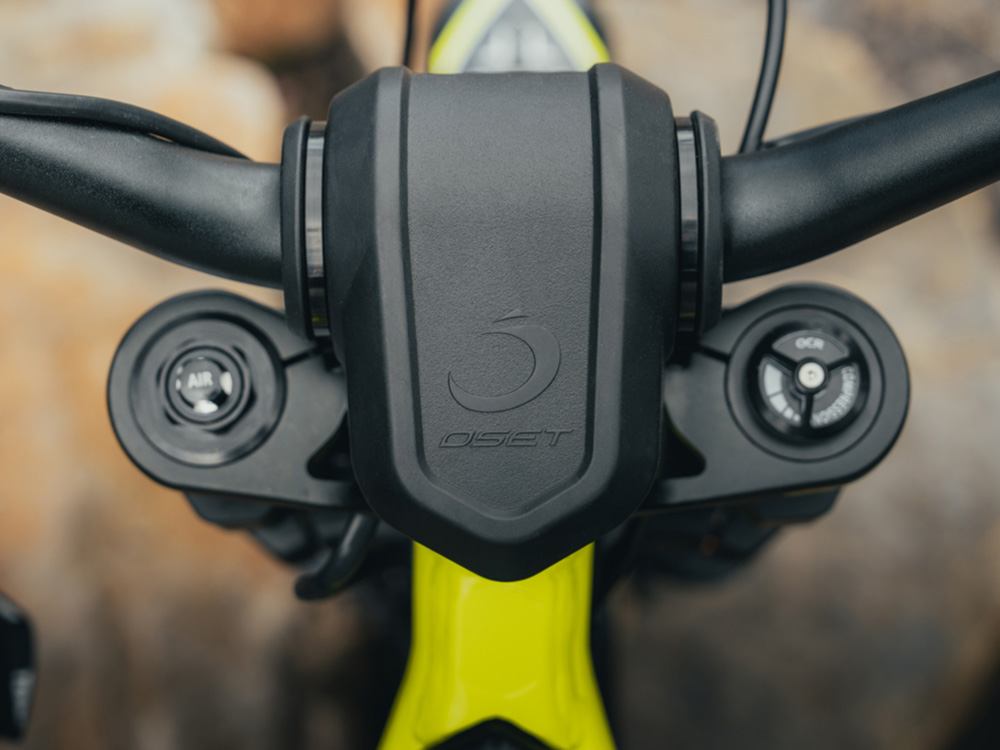

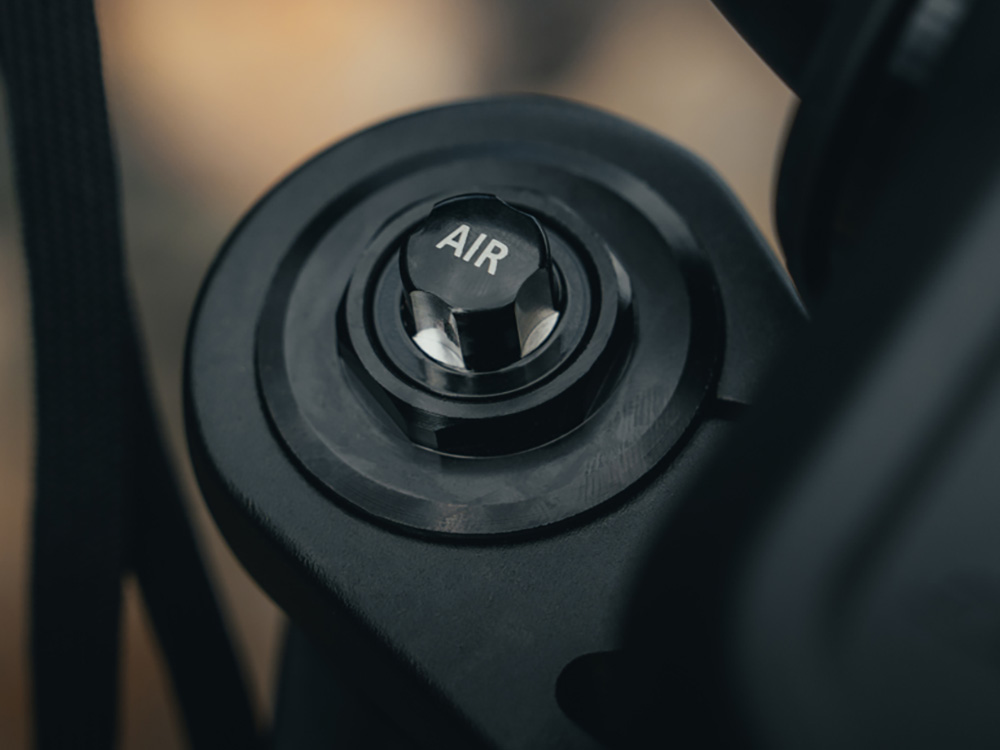

Adjustable suspension: 160mm air-sprung front fork and 145mm rear shock with rebound, compression, and volume adjustment up front, and rebound and volume adjustment at the rear, ideal for rider growth and varied terrain.

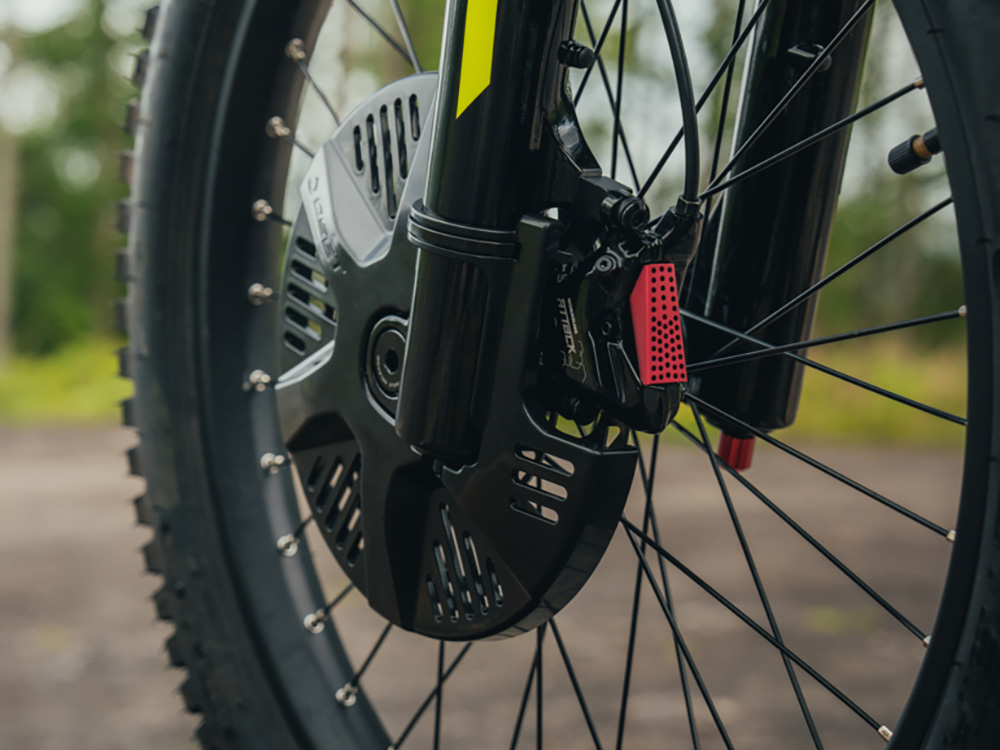

Hydraulic disc brakes: Four piston, front 203mm hydraulic disc and 180mm hydraulic rear, for progressive stopping with minimal hand pressure.
Essential safety information for riders and guardians
Triumph TXP motorcycles are electric off-road vehicles. They are not road-legal and must only be used on private land or in designated off-road areas, with appropriate permission.
Adult supervision is always required while the motorcycle is in use.
The parents/guardians of a rider below the age of 18 are directly responsible to ensure it is safe for the rider to operate the motorcycle.
Riders must wear a helmet, gloves, sturdy boots, and appropriate protective clothing. Always wear approved goggles to help vision and to protect your eyes.
Each TXP model is designed for a specific age range and maximum rider weight. Do not exceed the stated guidance.
These motorcycles are intended for use by one rider only. Do not carry passengers.
Riding this TXP motorcycle at night, when it is dark, may risk a collision with close vicinity objects such as vehicles, property or hidden obstacles.
The TXP’s parental controls must be configured before each ride. Only adults should adjust speed, power, or throttle settings.
Use only the supplied battery charger. Never use any other charger.
Use the supplied battery charger in a dry, ventilated indoor area. Do not charge unattended or overnight.
Do not jet-wash or submerge any part of the bike. Clean with a damp cloth and inspect components regularly.
Do not dismantle or modify electrical components. Servicing should only be carried out by trained technicians.
TXP motorcycles are classified as recreational off-road vehicles and are not subject to highway certification.
To ensure a long, safe, and trouble-free life for your motorcycle, maintenance should only be carried out by a competent person with the specialist knowledge and technical understanding of closed-course competition motorcycles, such as an authorised Triumph dealer.
Important: Failure to follow these safety instructions will void the manufacturer warranty and may result in damage or serious injury or death.
Only use supplied Triumph TXP charger
Connect the Triumph TXP battery charger to the bike before mains power; reverse when finishing. Using any other battery charger voids the warranty and risks an electric shock or a fire.
Charging time & LED indicators
Charger LED shows RED at startup, YELLOW while charging, and GREEN when fully charged.
Charge before first ride & after every session
Charge for 5–7 hours initially and after each ride to help balance battery cells.
Store half-charged & maintain monthly
For storage longer than a month, charge to 30–50%, store in cool, dry place, and top up every 60 days.
Indoor, ventilated area only
Charge indoors, away from water - dryer environment recommended.
Battery diagnostics & services
To remove the battery, use the single-twist connector and lift with the integrated carry handle. For diagnostics, book servicing with an authorised dealer via the on-board diagnostic port.
